Hydraulic Breaker for Excavator, Backhoe and Skid Steer Loader

Short Description:

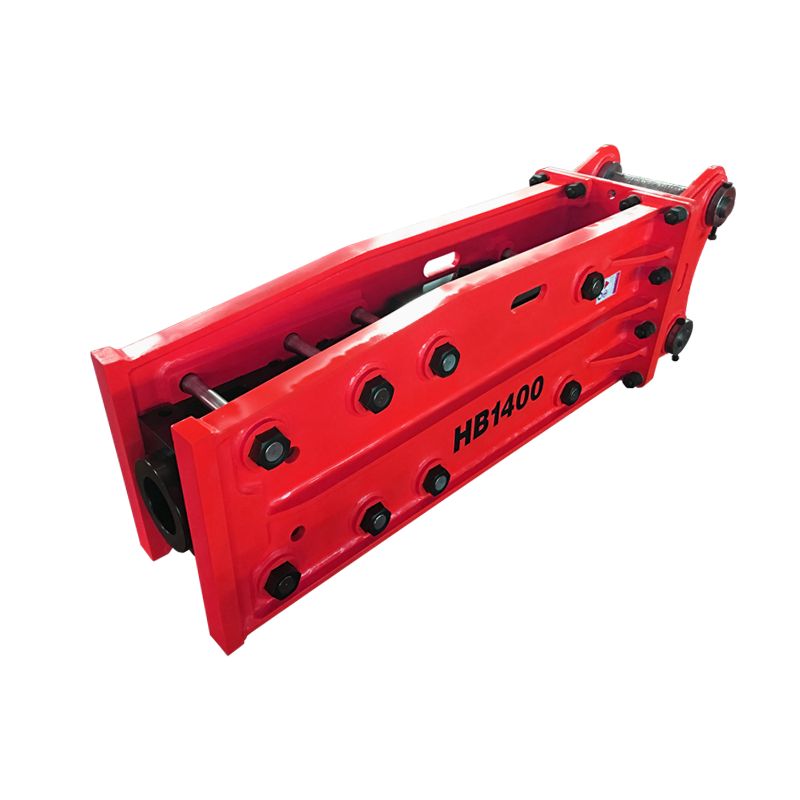

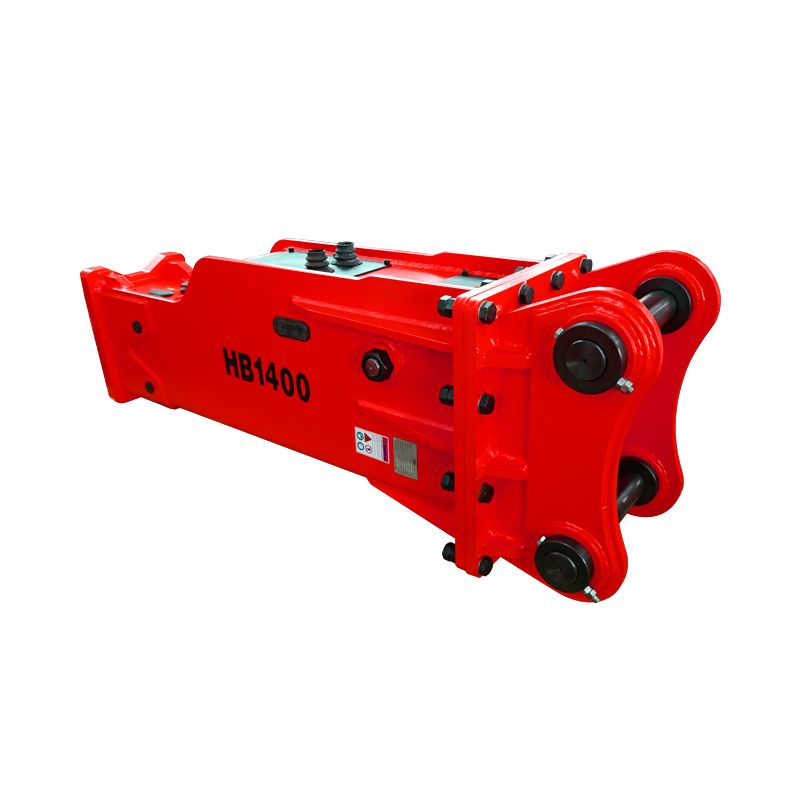

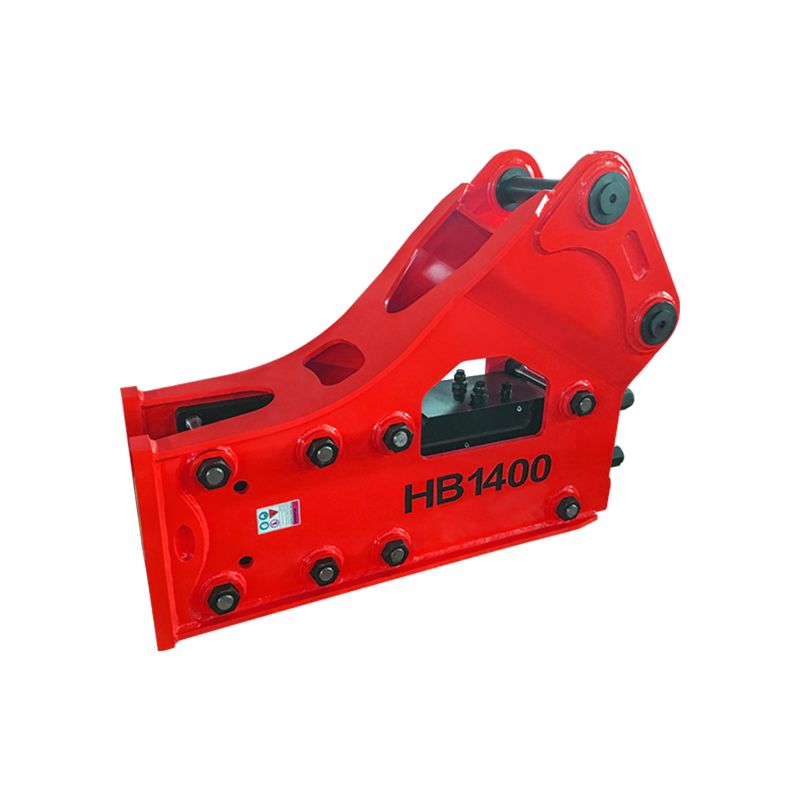

Crafts hydraulic breakers are able to divided into 5 types: Box Type Breaker (also called as Silenced Type Breaker) for excavators, Open Type Breaker (also called as Top Type Breaker) for excavator, Side Type Breaker for excavator, Backhoe Type Breaker for backhoe loader, and Skid Steer Type Breaker for skid steer loader. Crafts hydraulic breaker can bring you excellent impact energy in a variety of rock and concrete demolition. At the same time, our interchangeable spare parts to Soosan breakers help you avoid the trouble of buying spare parts for it. Crafts serve our customers with a wide range of products from 0.6t~90t.

Send email to us

Product Detail

Product Tags

Product Detail

● Various brands of excavators and backhoe loaders can be matched perfectly.
● Available in Wedge Lock, Pin-on and S-Style to match different quick couplers.
● Interchangeable spare parts to Soosan breakers

What are included of a Crafts hydraulic breaker?
- Hydraulic Breaker Body
- Chisels *2 pieces
- Hoses * 2 pieces
- N2 charging kit with pressure gauge * 1 piece
- N2 bottle * 1piece
- Spare seal kit * 1 set
- Hardened Pins * 2

Product Display

Product Specification

Description		CB350	CB400	CB450	CB530	CB680	CB750	CB850	CB1000	CB1250	CB1350	CB1400	CB1500	CB1550	CB1650	CB1750
Compare to Soosan Type		SB05	SB10	SB20	SB20	SB40	SB43	SB45	SB50	SB60	SB70	SB81	SB100	SB121	SB131	SB151
Weight (side type, kg)		62	87	100	130	250	380	510	760	1320	1450	1700	2420	2500	2900	3750
Working Oil Flow	l/min	12-28	15-30	20-30	25-45	36-60	50-90	45-85	80-120	90-120	130-170	150-190	150-230	150-230	200-260	210-280
Working Pressure	bar	80-95	90-100	90-100	90-120	110-140	120-170	127-147	150-170	150-170	160-185	165-185	170-190	170-200	180-200	180-200
Impact Rate	bpm	850-1100	600-1100	500-1000	500-1000	500-900	400-800	400-800	400-700	400-650	400-650	400-500	300-450	300-400	250-400	250-350
Hose Diameter	inch	3/8, 1/2	1/2	1/2	1/2	1/2	1/2	3/4	3/4	1	1	1	1 1/4	1 1/4	1 1/4	1 1/4
Chisel Diameter	mm	Φ35	Φ40	Φ45	Φ53	Φ70	Φ75	Φ85	Φ100	Φ125	Φ135	Φ140	Φ150	Φ155	Φ165	Φ175
N2 Pressure (Back head)	bar	14-17	14-17	14-17	14-17	14-17	14-17	14-17	14-17	14-17	14-17	14-17	17-20	17-20	17-20	17-20
N2 Pressure (Accumulator)	bar	/	/	/	/	/	/	/	/	/	55-60	55-60	55-60	55-60	55-60	55-60
Applicable Excavator	ton	0.5-1	0.5-1.2	1-1.5	2.5-4.5	3-7	6-9	7-14	10-15	15-18	18-25	20-30	25-30	27-36	30-45	40-55
Energy	J	137	145	250	350	540	785	1260	1960	2550	3480	3690	4500	5730	6830	14000

Product Application

A hydraulic breaker is a powerful percussion hammer to help you with your tasks of demolition, construction, quarry and production breaking need. Crafts hammer offer you a really good performance and cost effectiveness.
