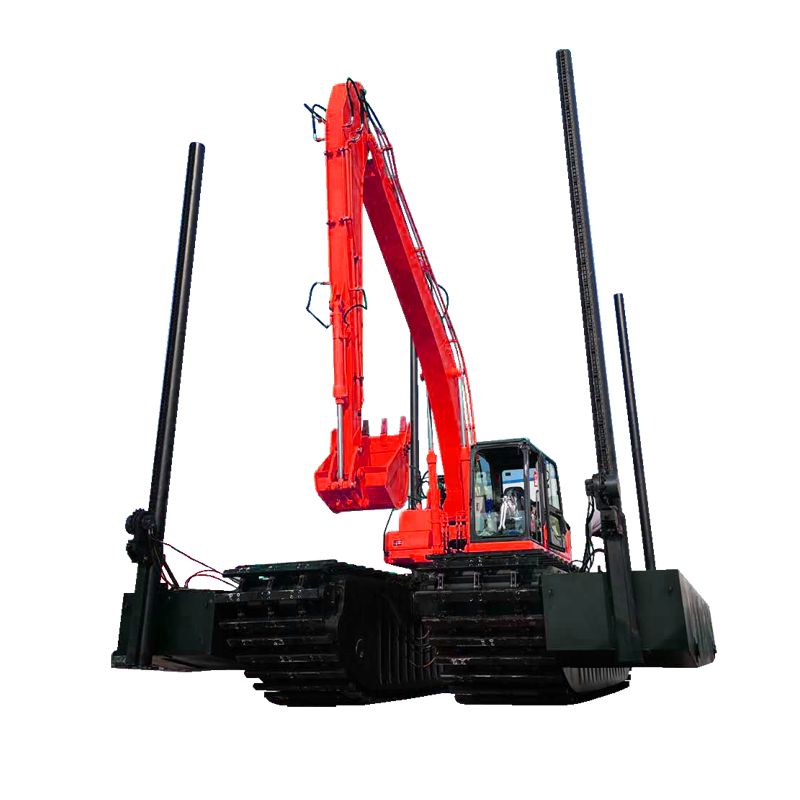

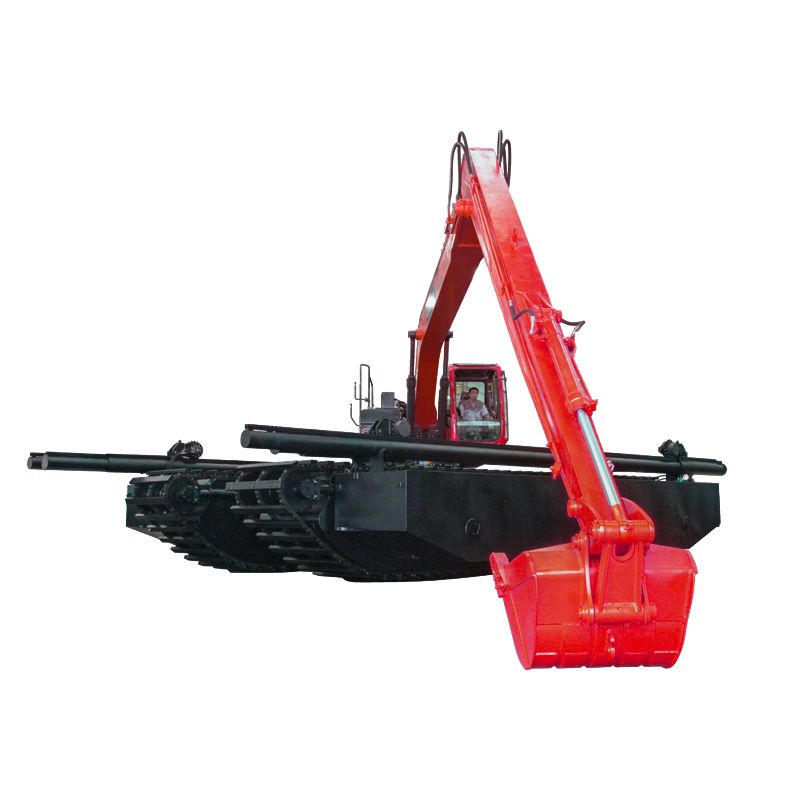

Marsh buggy, Swamp Buggy, Amphibious Excavator for Swamp, Marsh, Wetland Clearance
● Various brands of excavators can be matched perfectly.
● Material: AH36 vessel special material & 6061T6 aluminum alloy with high strength material.
● Coining groove on the pontoon side making the pontoon stronger.
● 40Cr chains with 20CrMoTi medium sleeves.
● Customized spud length for different work condition.
|

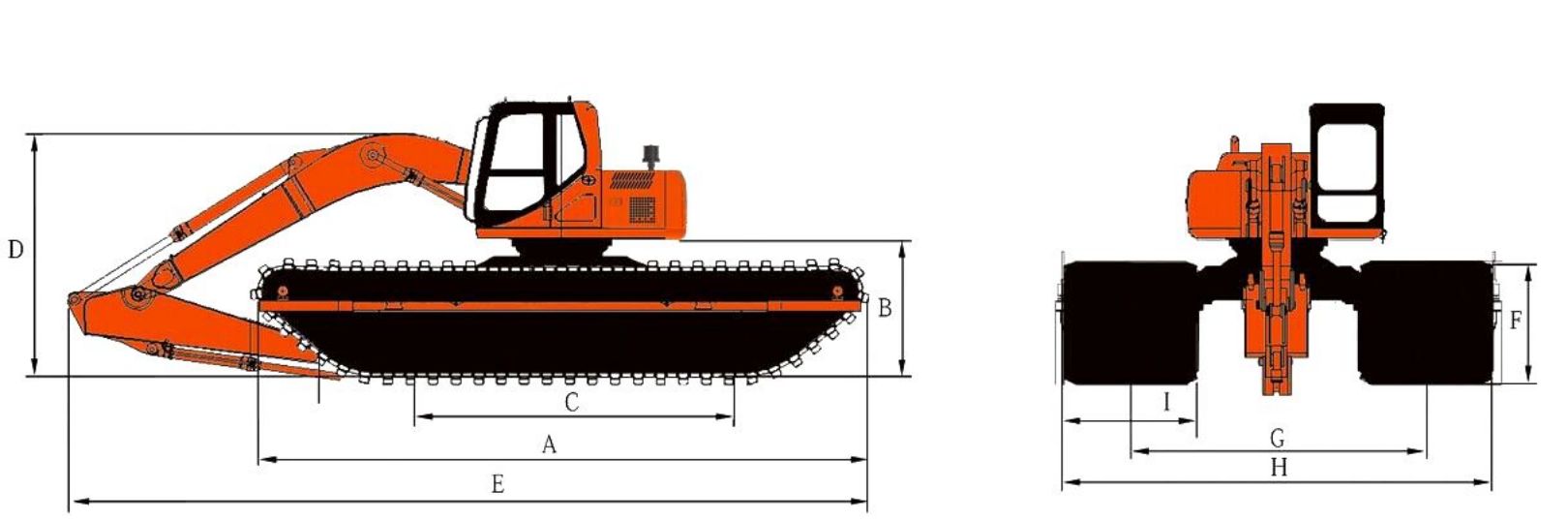

Item |
Description |

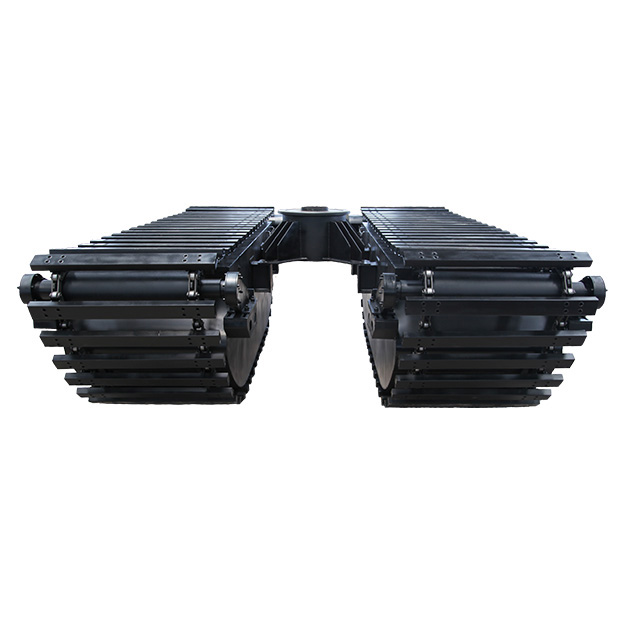

Amphibious Undercarriage Models |
|||||||
|
AU50 |
AU80 |
AU120 |
AU160 |
AU200 |
AU300 |
AU400 |
AU500 |
||
|
A |
Undercarriage Length |
5200mm |
5700mm |
6200mm |
8500mm |
9500mm |
10500mm |
11500mm |
13500mm |
|
B |
Countweight Ground Clearance |
1510mm |
1810mm |
2010mm |
2010mm |
2010mm |
2010mm |
2200mm |
2540mm |
|
C |
Pontoon Grounded Length |
1200mm |
2000mm |
3500mm |
4500mm |
5000mm |
6500mm |
7000mm |
7000mm |
|
D |
Overall Height to Boom Top |
2600mm |
3700mm |
3770mm |
3870mm |
3950mm |
4040mm |
4140mm |
4800mm |
|
E |
Overall Length |
7300mm |
9550mm |
11300mm |
12950mm |
14450mm |
15450mm |
15950mm |
15950mm |
|
F |
Pontoon Height |
1340mm |
1640mm |
1840mm |
1840mm |
1840mm |
1840mm |
2040mm |
2340mm |
|
G |
Track Gauge |
2700mm |
3500mm |
3660mm |
3660mm |
3700mm |
4700mm |
4700mm |
4700mm |
|
H |
Overall width |
3700mm |
4500mm |
5160mm |
5160mm |
5200mm |
6400mm |
6400mm |
6400mm |
|
I |
Pontoon Width |
1000mm |
1300mm |
1500mm |
1500mm |
1500mm |
2000mm |
2000mm |
2000mm |

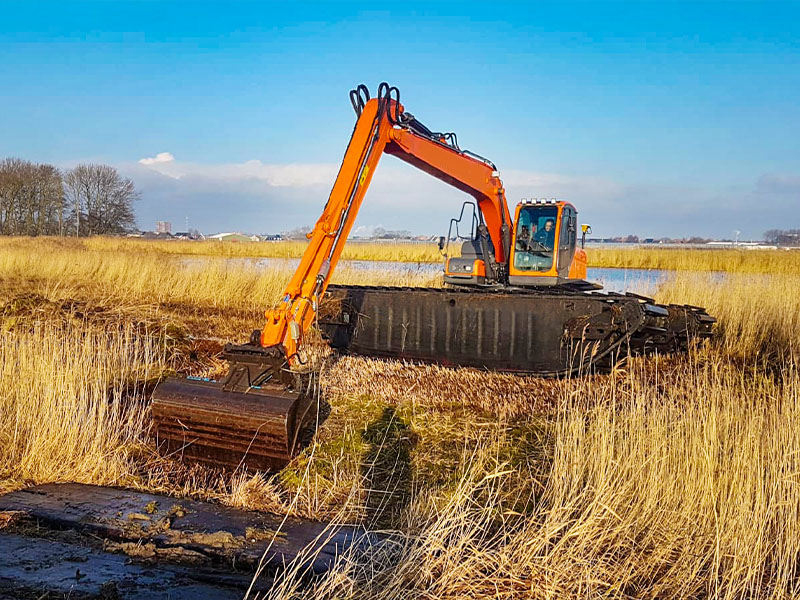

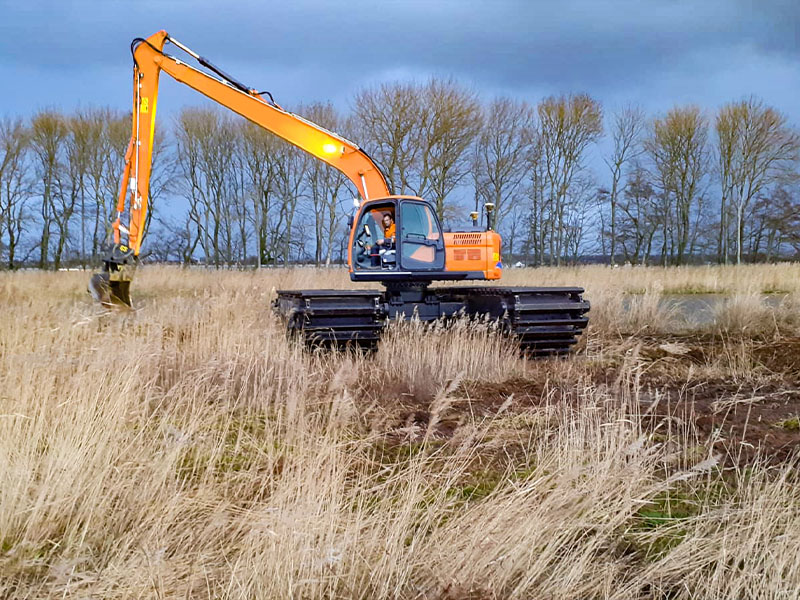

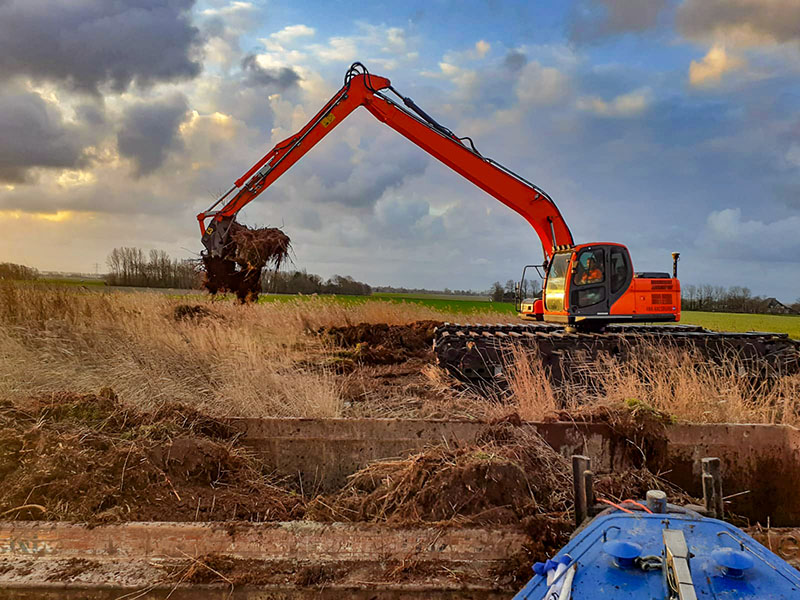

An amphibious excavator is specially designed to work in swampy area, wetland, shallow water and all soft terrains with ability to float on water. Due to its low-ground pressure design, whether you need an excavator for dredging, remediation, pond cleaning, or other means of transportation, amphibious excavator would be your best choice.
