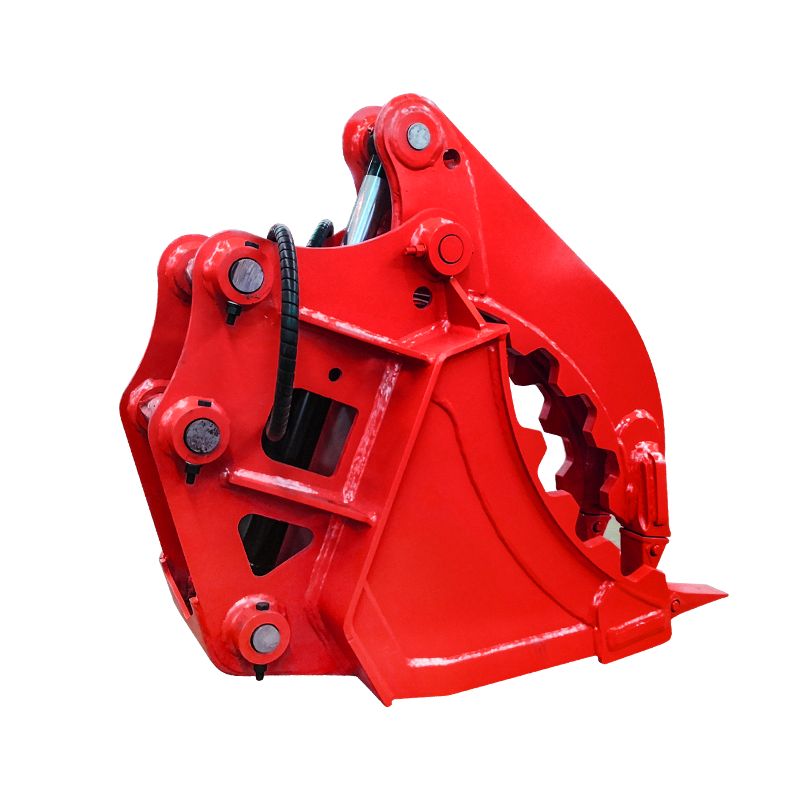

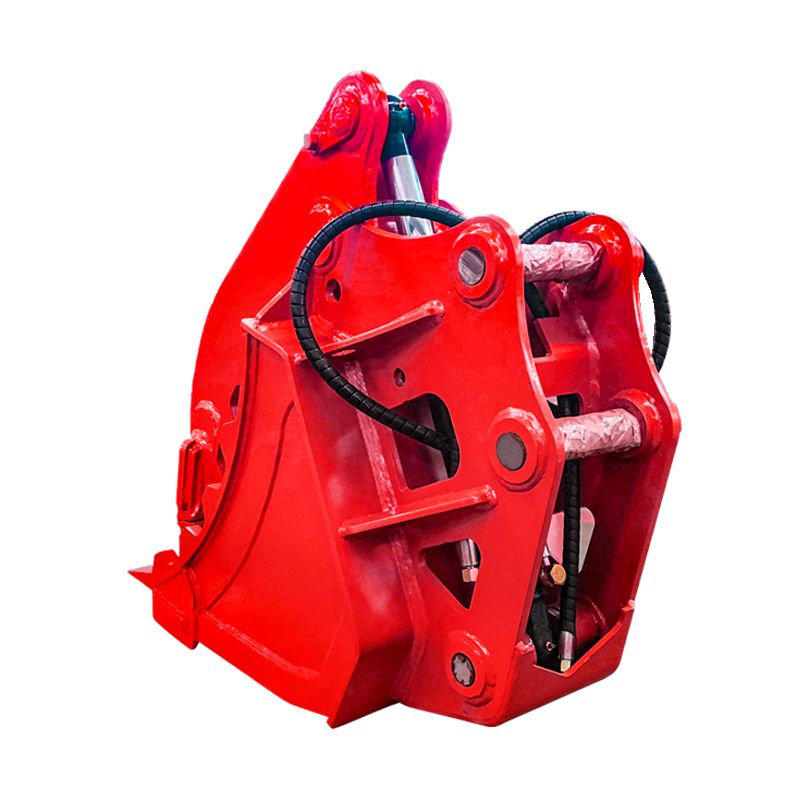

Multi Purpose Grab Bucket with a Heavy-duty Thumb

Short Description:

The grab bucket is like some kind of excavator hand. There is a strong thumb equiped on the bucket body, and the thumb hydraulic cylinder has been put at the rear of the bucket, which helps you solve the cylinder mount fixing welding trouble. Meanwhile, the hydraulic cylinder is protected well by the bucket connection bracket, the collision problem of the hydraulic cylinder in use will never come to find you.


Product Detail

Product Tags

Product Detail

When you are using a hydraulic or a mechanical separated thumb, sometimes, you need to adjust your bucket direction to cooperate with the thumb, however, a grab bucket avoids this problem perfectly, the grab bucket’s thumb is directly attached to the primary bucket, whenever you need to pick up something, just open the grab bucket thumb and catch it. Crafts not only optimized the thumb parts of the grab bucket, but also strengthen the bucket body. Though it loses some loading capacity, but we reinforced it durable to dig harder things better, which make the grab bucket can be used as a stone grapple.

● Various brands of excavators and backhoe loaders can be matched perfectly.

● Available in Wedge Lock, Pin-on, S-Style to match different quick couplers.

● Material: Q355, Q690, NM400, Hardox450 available, casting deputy blade available.

● G.E.T. parts: CAT J series teeth & adapters are now standard on Crafts buckets. Various ground engaging tools are available to meet your specifications, such as ESCO, Komatsu, Volvo etc.

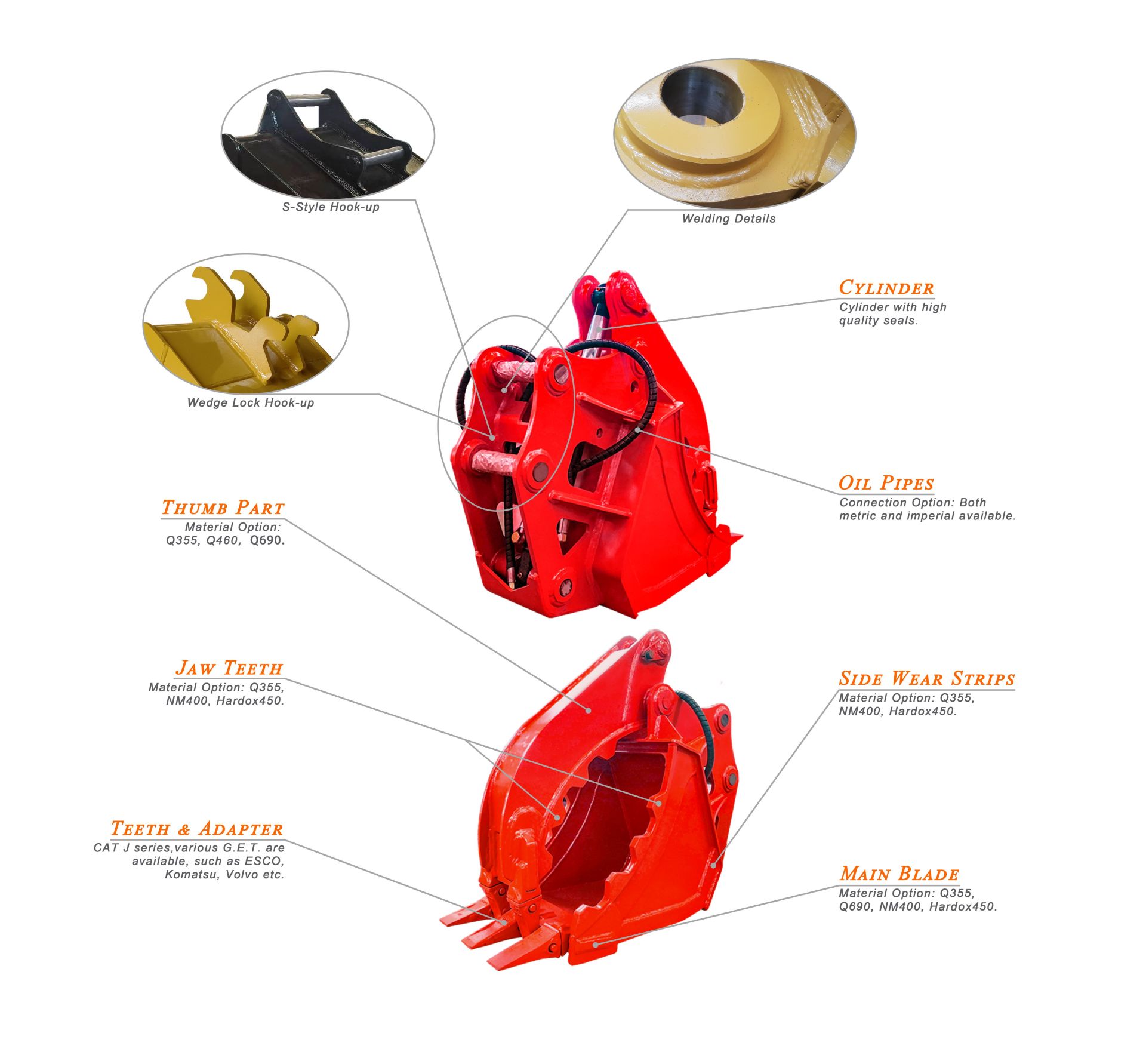

Grab Bucket

Product Display

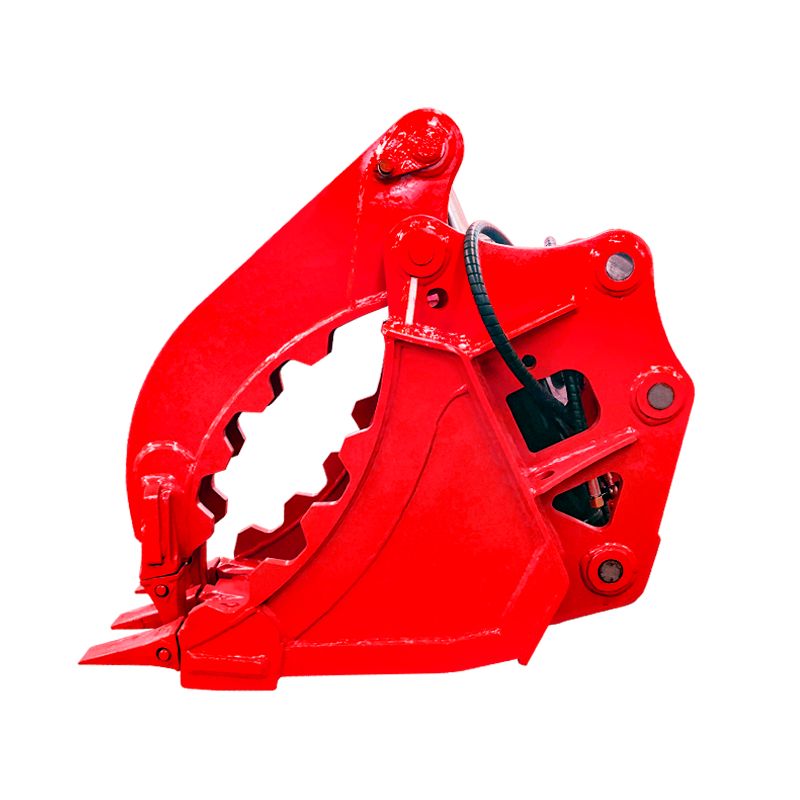

Multi purpose Grab Bucket with a Heavy-duty Thumb (2)

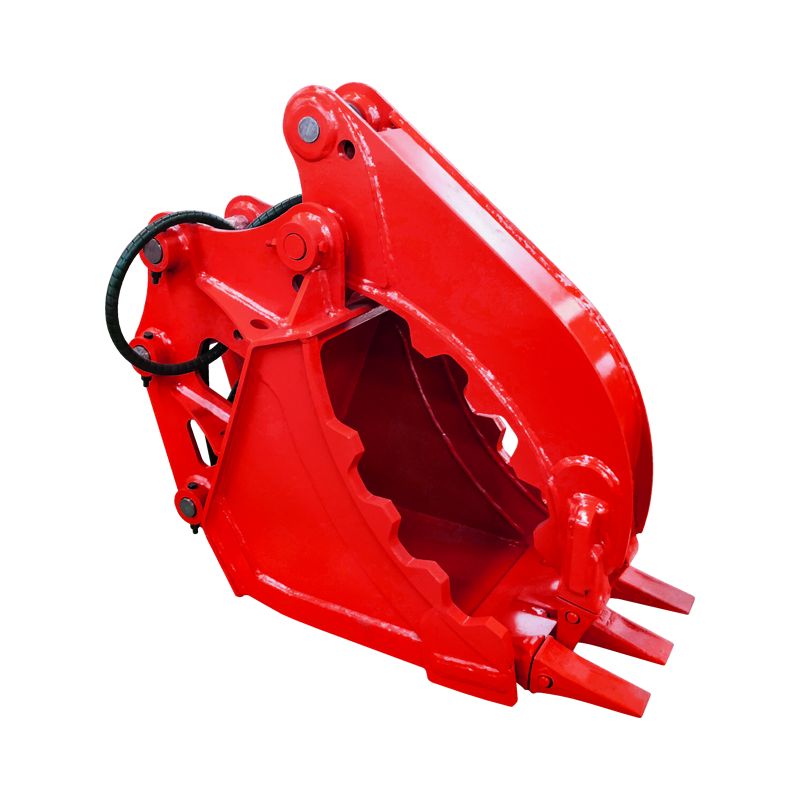

Multi purpose Grab Bucket with a Heavy-duty Thumb (5)

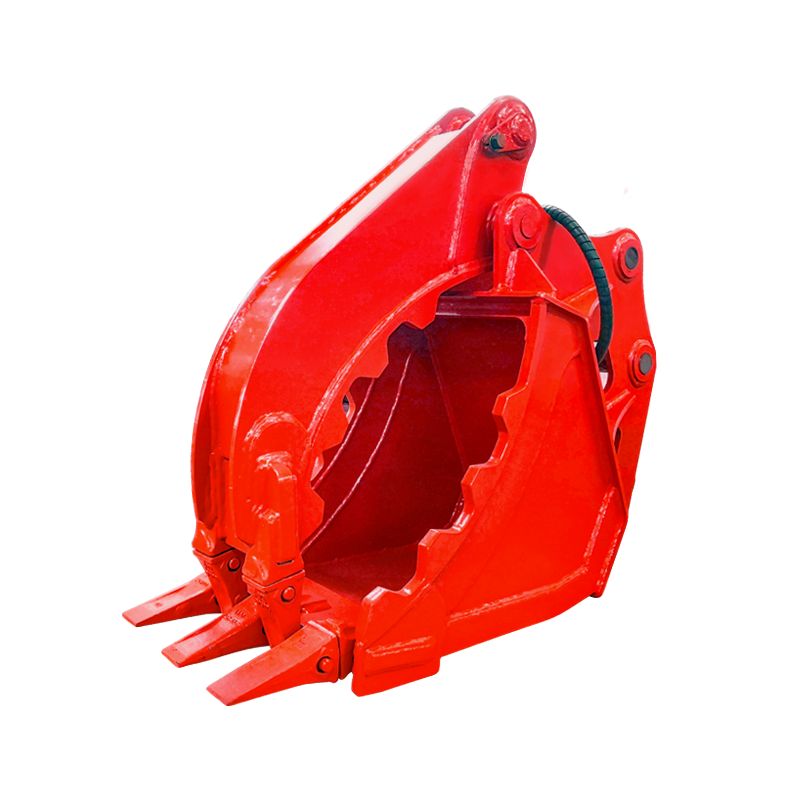

Multi purpose Grab Bucket with a Heavy-duty Thumb (1)

Product Specification

Item

Suitable
Excavator
(Ton)

Weight
(Kg)

Width
(mm)

Jaw
Opening
(mm)

Operating
Pressure
(Bar)

Set Up
Pressure
(Kg/㎡)

Operating
Flux
(L/Min)

Thumb
Width
(mm)

CGB01

1~2

92

228

540

80~110

120

20~35

130

CGB02

3~4

145

340

720

100~130

150

25~40

202

CGB03

5~7

260

458

1160

110~140

170

30~55

240

CGB04

8~10

380

540

1315

120~160

180

50~100

260

CGB05

11~16

690

610

1615

150~170

190

90~110

320

CGB06

18~26

1120

800

2000

160~180

200

100~140

430

Product Application

Crafts grab bucket is a complex of a heavy duty bucket and a hydraulic thumb, to help you complete the action of digging and grabbing with only one attachment. It is much stronger than a normal bucket with a normal thumb, better for much heavier work condition. it is really good at moving large amounts of dirt and debris, grabbing stones or timbers, and digging ditches.
