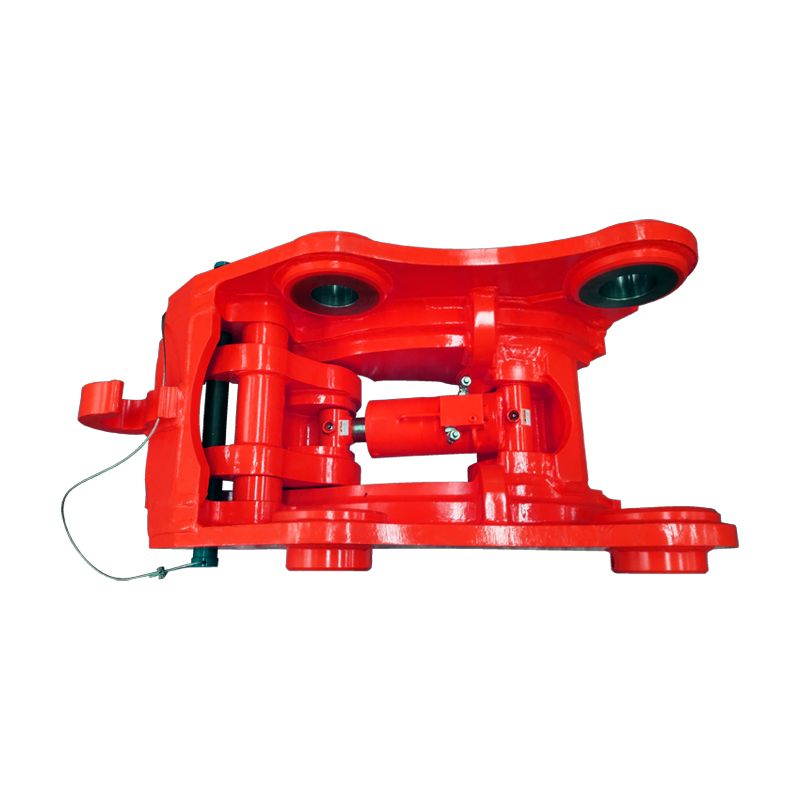

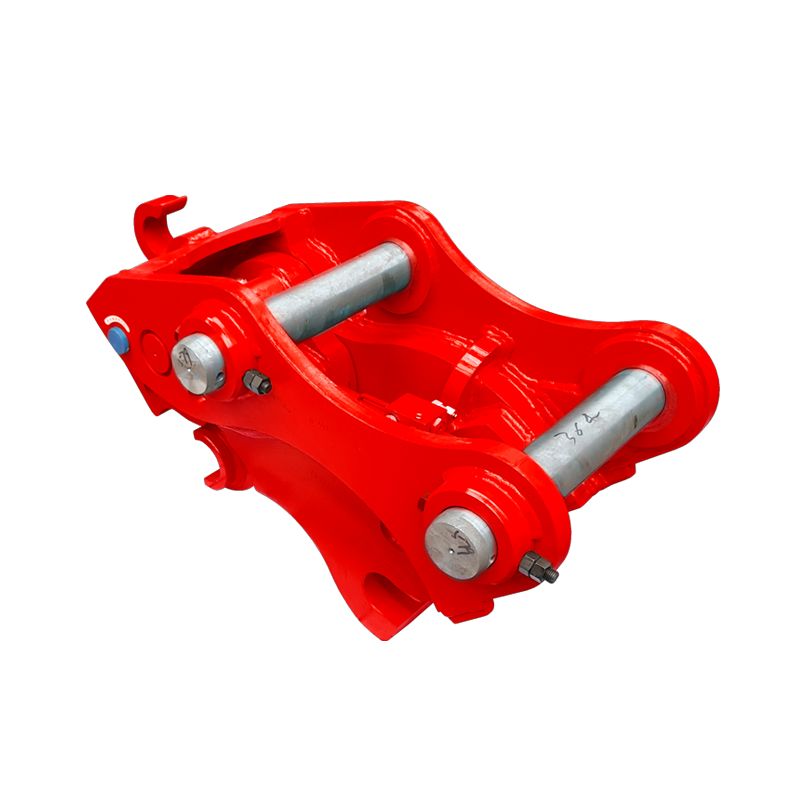

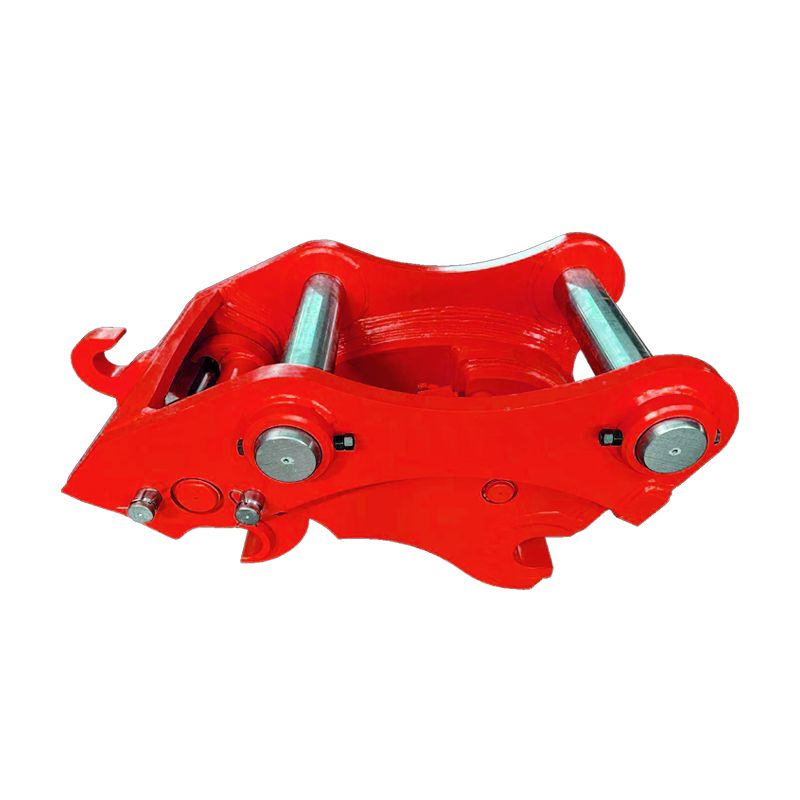

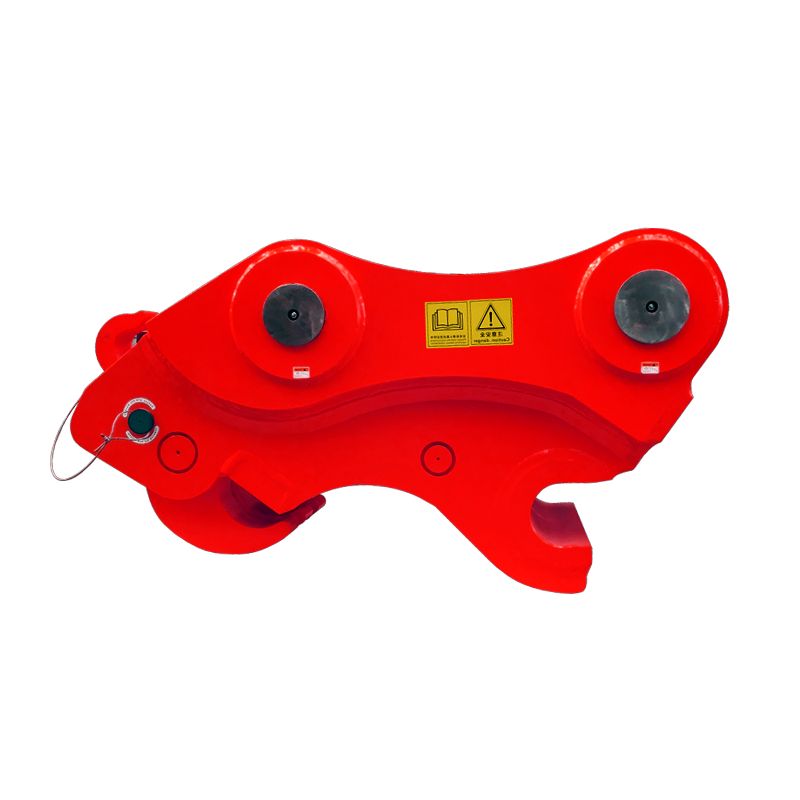

Pin Grab Type Hydraulic Quick Coupler
Crafts quick coupler is able to suit to 4t to 55t excavators, almost cover all the popular ton range of the excavators. Compare the other complex design hydraulic quick couplers, Crafts quick coupler could bring you the good cost efficiency, make you enjoy the quick coupler convenience with costing only a little money.
● Various brands of excavators and backhoe loaders can be matched perfectly.

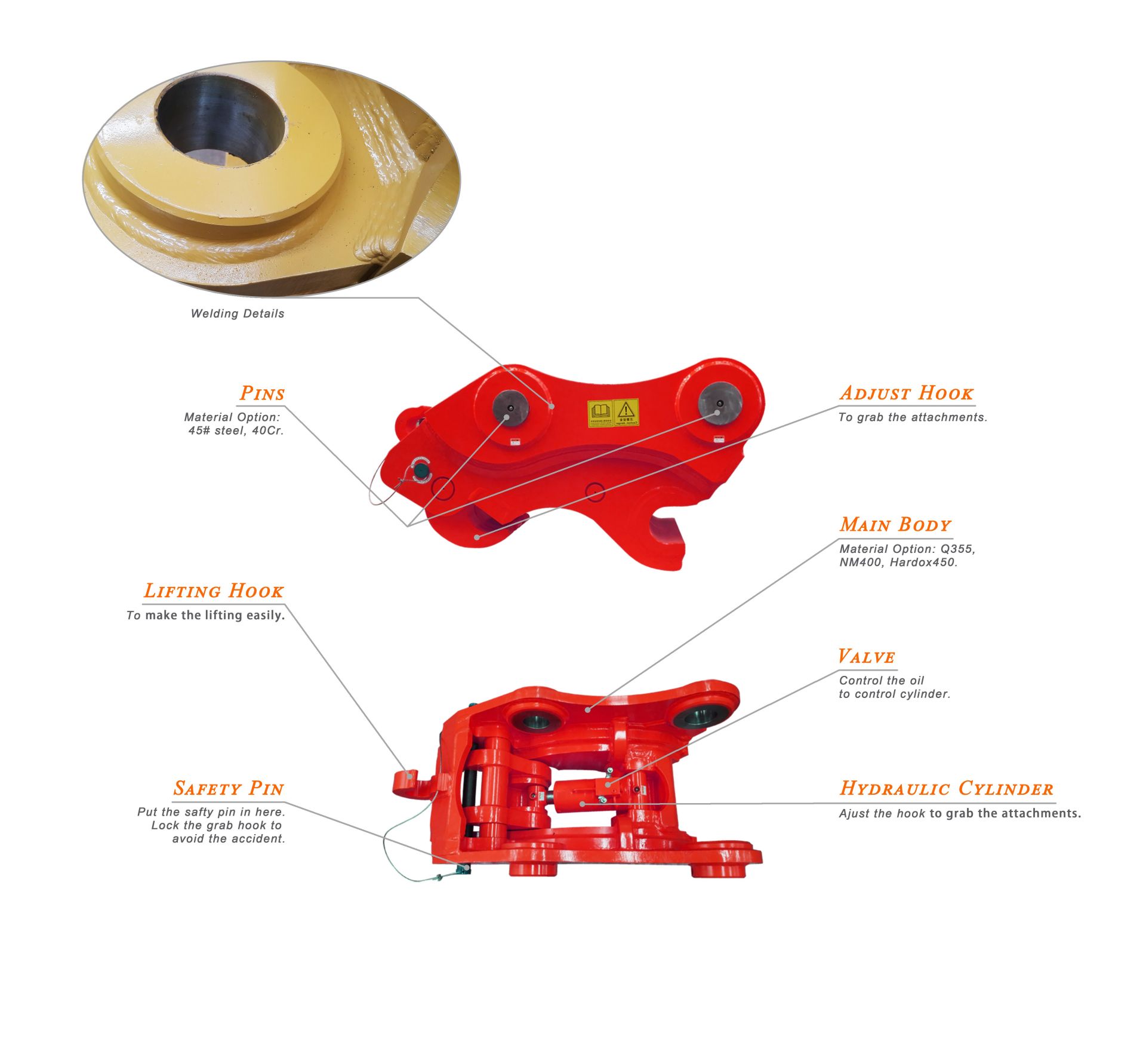

● Pins Material: 45# Steel in normal; 40Cr, 20CrMuTi and other better materials are also available.
● Material: Q355, Q690, NM400, Hardox450 available.
● Fit to 1~20t excavators.
● Equipped with a safety pin to ensure bolt cover when the fixed function of the cylinder fails, where will be no safety accident with falling off.
|
Model |
Weight |
Length |
Height |
Width |
Pin Center |
Cylinder Stroke |
Pressure |
Flux |
Ton Class |
Packing Size |
|
CFT-HQC02 |
60 |
534-545 |
307 |
258-263 |
230~270 |
208-318 |
40~380 |
10~20 |
4-8 |
1000*500*500 |
|
CFT-HQC06 |
200 |
765 |
388 |
436 |
270~436 |
340~486 |
40~380 |
10~20 |
12-18 |
1000*500*500 |
|
CFT-HQC08 |
400 |
944 |
492 |
483 |
460~480 |
256-390 |
40~380 |
10~20 |
19-24 |
550*550*1050 |
|
CFT-HQC10 |
500 |
574 |
543-568 |
473-540 |
473~540 |
413-590 |
40~380 |
10~20 |
25-32 |
600*600*1150 |
|
CFT-HQC14 |
800 |
1006-1173 |
558-610 |
606-663 |
520~600 |
520-590 |
40~380 |
10~20 |
33-40 |
1300*700*710 |
|
CFT-HQC17 |
900 |
1006-1173 |
558-610 |
606-663 |
550~620 |
520-590 |
40~380 |
10~20 |
35-45 |
1400*700*710 |
|
CFT-HQC20 |
1000 |
1500 |
1000 |
1000 |
600~700 |
580~650 |
40~380 |
10~20 |
45-55 |
1500*1000*1000 |
Excavator quick coupler is a special attachment between the excavator arm and the end attachments. Like a kind of mechanical wrist of the excavator arm, it makes people be able to change work tools quickly and easily in a matter of seconds. In some way, the quick coupler appearance accelerates the multi-purpose excavator attachment development and also promote the way of excavator construction work in recent years.
