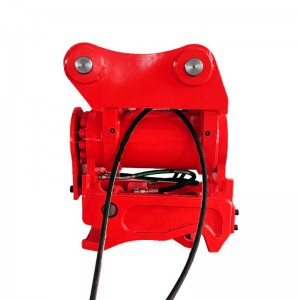

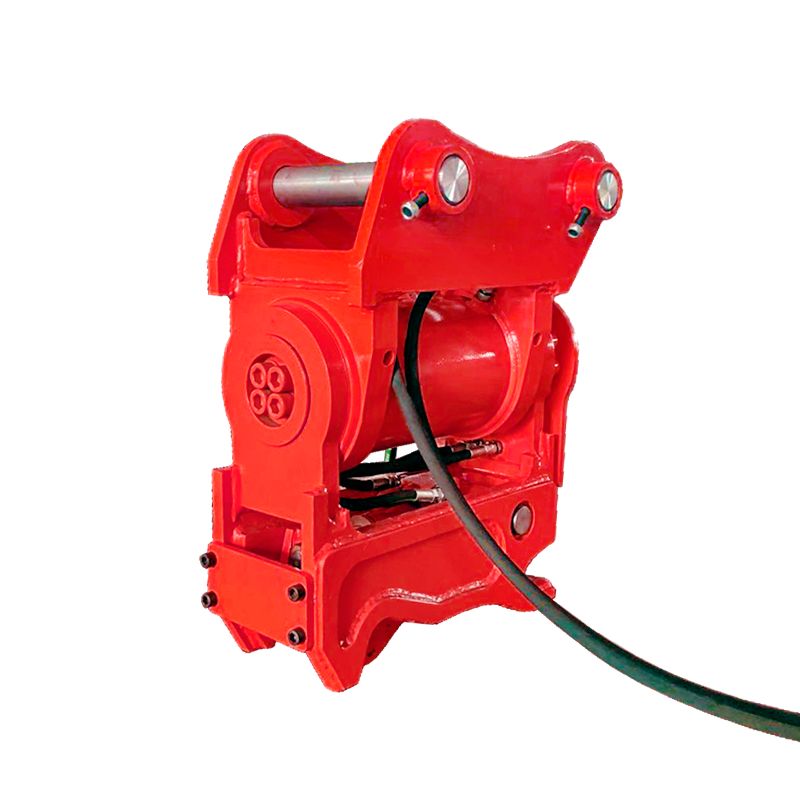

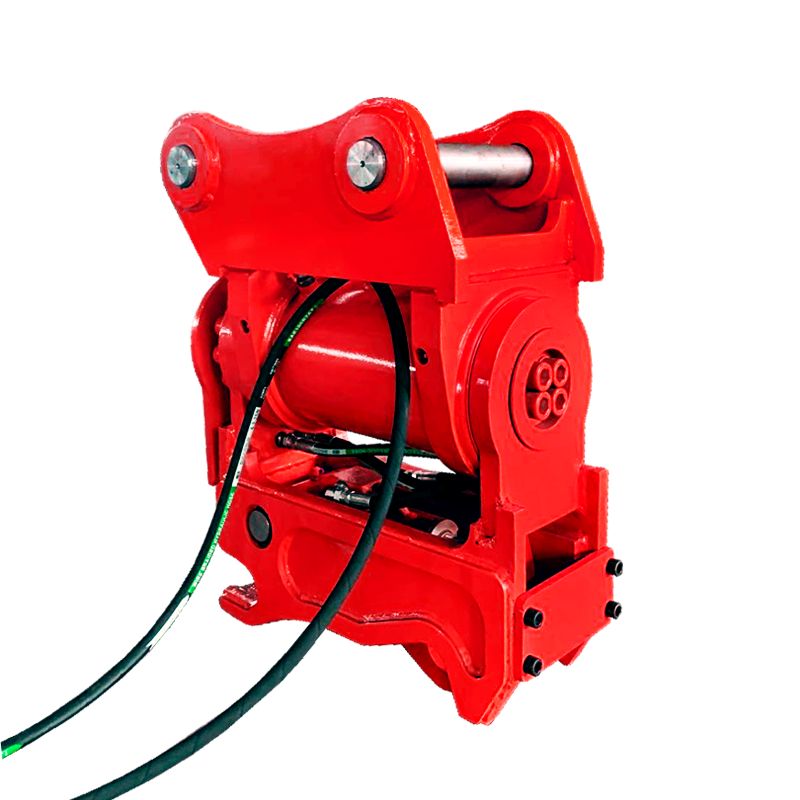

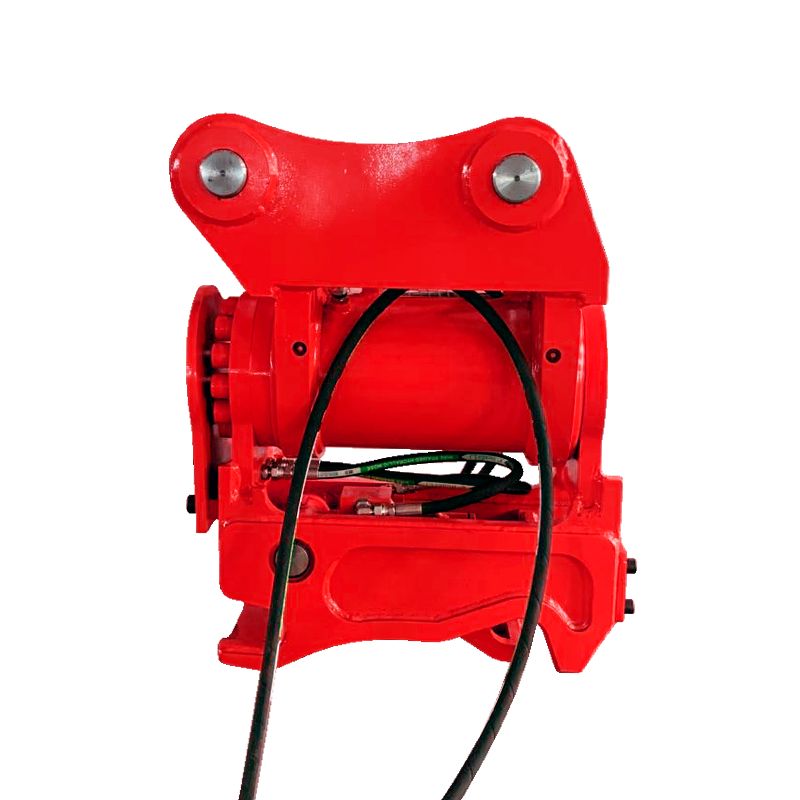

Pin Grab Type Tilt Quick Couplers
● Various brands of excavators and backhoe loaders can be matched perfectly.
● Pins Material: 45# Steel in normal; 40Cr, 20CrMuTi and other better materials are also available.
● Material: Q355, Q690, NM400, Hardox450 available.
● Fit to 0.8~36t excavators.
|
Model |
Pin Diameter (mm) |
Ton Class (ton) |
Pressure (Mpa) |
Flow (L) |
|
CFT-TQC02 |
25-30 |
0.8-2 |
40~380 |
10~20 |
|
CFT-TQC04 |
35-40 |
3-4 |
40~380 |
10~20 |
|
CFT-TQC06 |
45 |
5-6 |
40~380 |
10~20 |
|
CFT-TQC09 |
50-55 |
7-9 |
40~380 |
10~20 |
|
CFT-TQC15 |
60-65 |
10-15 |
40~380 |
10~20 |
|
CFT-TQC20 |
80 |
17-22 |
40~380 |
10~20 |
|
CFT-TQC30 |
90 |
25-30 |
40~380 |
10~20 |
Excavator quick coupler is a special attachment between the excavator arm and the end attachments. Like a kind of mechanical wrist of the excavator arm, it makes people be able to change work tools quickly and easily in a matter of seconds. In some way, the quick coupler appearance accelerates the multi-purpose excavator attachment development and also promote the way of excavator construction work in recent years.
